FlexFlow
VISADES control unit Flex Flow IQ40
Article number: &50610002
Features
Flow Range:
bis 8,3 m³/h
Compatible with
T80F & T80F ECO PLUS
Design
Z
Pipeline
Geberit Mapress, V4A / SS316L
Drinking water approval
DVGW drinking water approval
Standard flushing variant 1
6/4" Solenoid
Flushing variant 2
6/4" control ball valve
Flow control (main valve)
6/4" control ball valve
Flow measurement
FD-Q32C
Control range flow
til 8,3 m³/h
Control range UV transmission
5 - 85% T100
Description

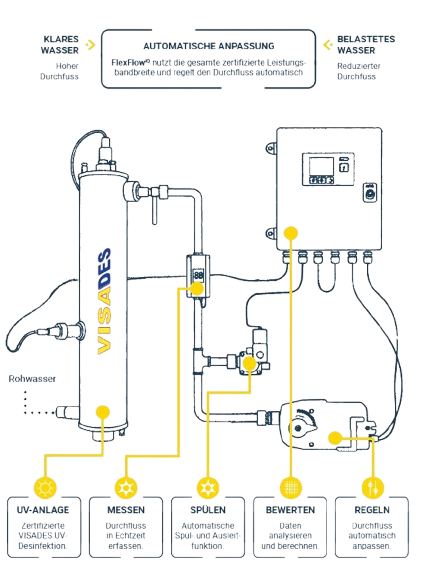

VISADES FlexFlowIQ40 for intelligent System Conrtol
Dynamic, intelligent flow control for VISADES UV systems of any size, ensuring reliable operation even under changing conditions.
Additional Benefits of FlexFlowIQ
- Maximum operational reliability of the UV disinfection system through automatic adjustment of the flow rate to changing raw water conditions.
- 100% utilization of the full treatment capacity of the UV system at all times.
- Adjustable minimum and maximum flow rate limits.
- Optional adjustable minimum and maximum pressure limits.
- Compact, pre-assembled stainless steel (AISI 316L / V4A) piping module with all components required for UV system operation integrated.
- Simple and fast in-line installation (inlet and outlet aligned on the same axis).
- Plug-and-play design: all electrical wiring is pre-installed with plug-in connectors.
